Integration

Overview

This page provides information about the integration object and its configuration options.

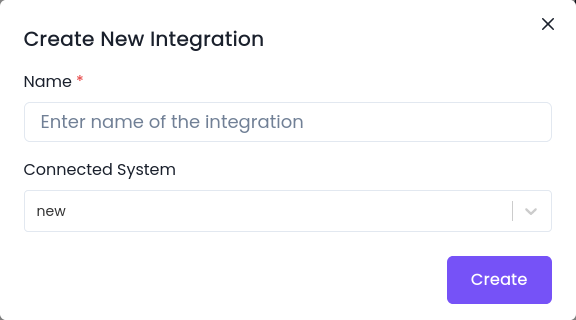

Create

To create an expression rule:

1. In your application go to application view, select an application and either click on the application name or go to object view.
2. Click the Create New drop down and select Integration.
3. Configure the following properties:

• Name
• Connected System

The connected system is automatically set to the application you’re working in if you’ve selected one in the Applications view. Otherwise, it appears as a drop down where you can choose the connected system.

4. Click create.

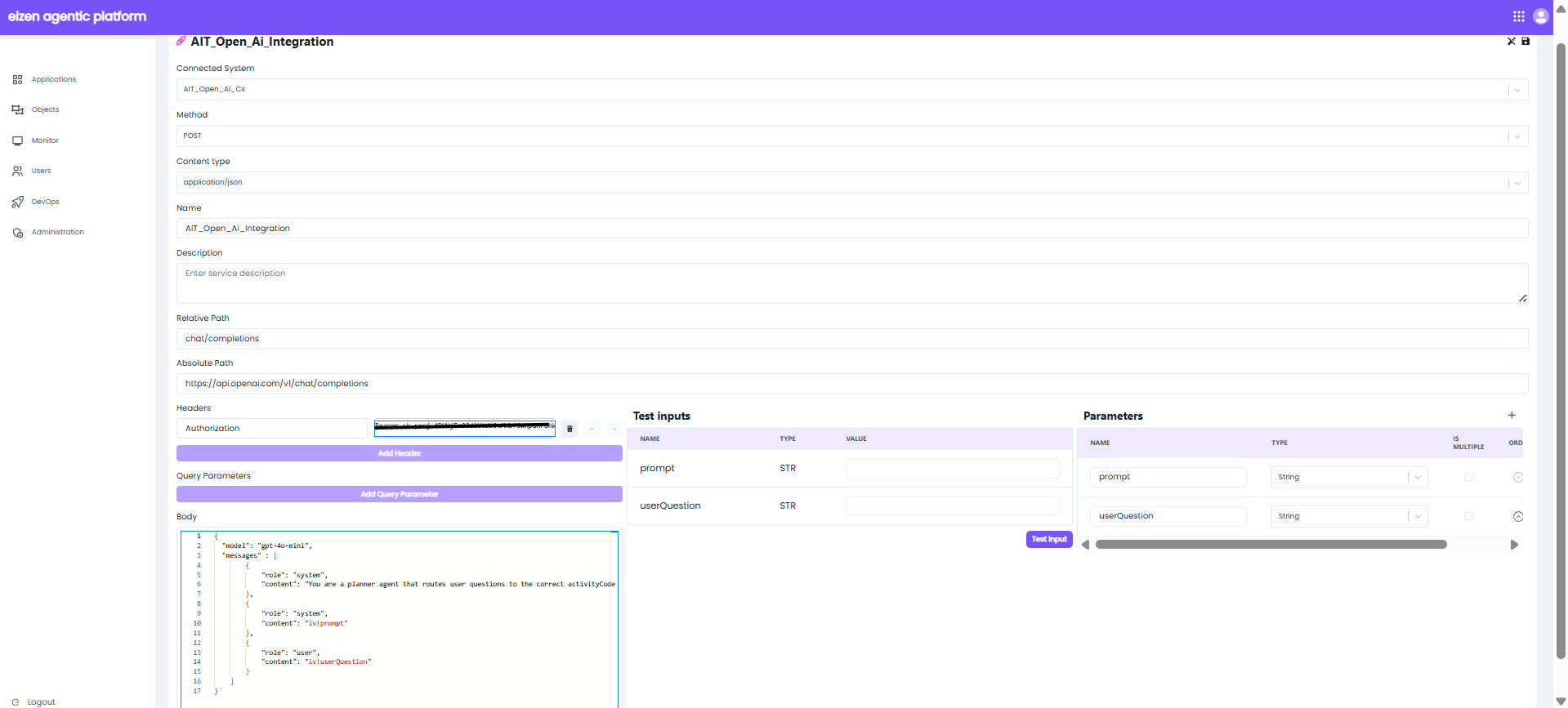

Integration Setup and Input Testing

When creating an Integration in the platform, the following steps need to be followed:

1. Connected System

• Select the required Connected System which contains the base URL and authentication details.
• Example: AIT_Open_Ai_Cs for OpenAI API.

2. Method and Path

• Choose the correct HTTP Method (GET, POST, PUT, DELETE).
• Provide the Relative Path (e.g., chat/completions).
• The Absolute Path will be auto-generated based on the connected system URL + relative path.

3. Headers

• Add necessary headers such as Authorization, Content-Type, etc.
• Example:

  Authorization: Bearer <API_KEY>
  Content-Type: application/json

4. Input Body

• Define the request body as per the API documentation of the integrated service.
• Example for OpenAI:

{
  "model": "gpt-4o-mini",
  "messages": [
    {
      "role": "system",
      "content": "You are a planner agent that routes user questions to the correct activityCode"
    },
    {
      "role": "system",
      "content": "iv!prompt"
    },
    {
      "role": "user",
      "content": "iv!userQuestion"
    }
  ]
}

Here, iv!prompt and iv!userQuestion are Input Variables used in the request body.

Understanding iv:

• The prefix iv stands for Input Variable.
• Input Variables are the parameters passed into Integration at runtime.
• They are used to send data from the workflow (e.g., process variables) into an external service or system connected through an integration.
• These variables are mapped when configuring the Service → Inputs section of the Service Task.

5. Adding Input Variables

• New Input Variables can be created by clicking on the + symbol under Parameters.

• Each input variable must have:

  1.Name

  2.Type (e.g., String, Number, Boolean)

  3.Is Multiple (for array inputs)

6. Save and Test

• Once the body and variables are defined, click Save symbol.
• Provide values for the input variables in the Test Inputs section.
• Click Test Input to execute the integration and validate the response.

Element	Field	Description
Top Section	Name	The internal name of this integration endpoint. Used to identify the integration within the platform.
	Connected System	The external system this integration is connected to. It contains settings like base URL, authentication, etc.
	Method	The HTTP method used for this integration call.
	Content Type	Specifies the media type of the request body. In this case, it's sending JSON.
Path Fields	Relative Path	The path relative to the base URL of the connected system.
	Absolute Path	The full endpoint URL used when making the actual API call. This is auto-generated by combining the connected system’s base URL with the relative path.
Description	Description	Optional field where you can describe what this integration does or any important notes.
Request Details	Add Header	Lets you add custom HTTP headers.
Query Parameters	Add Query Parameter	Lets you append query string parameters to the URL.
Body	Body	contains the actual data you want to send to the external system you're integrating with, typically formatted as JSON.
Test Inputs	Name	Name of the input variable. This is what gets passed into the request body.
	Type	Type of test data.
	Value	This is where you enter a sample payload for testing the integration call.
	Test Input Button	Executes the integration using the sample input to verify it’s working.
Parameters Section	Name	The expected input variable name for this integration.
	Type	You can define a Custom Data Type (CDT) here to structure what the input must contain.
	Is Multiple	Check this box if the integration should accept a list (array) of these inputs instead of just one.
